System Designs

Ventilation designs are produced in house using CAD by our expert qualified staff.

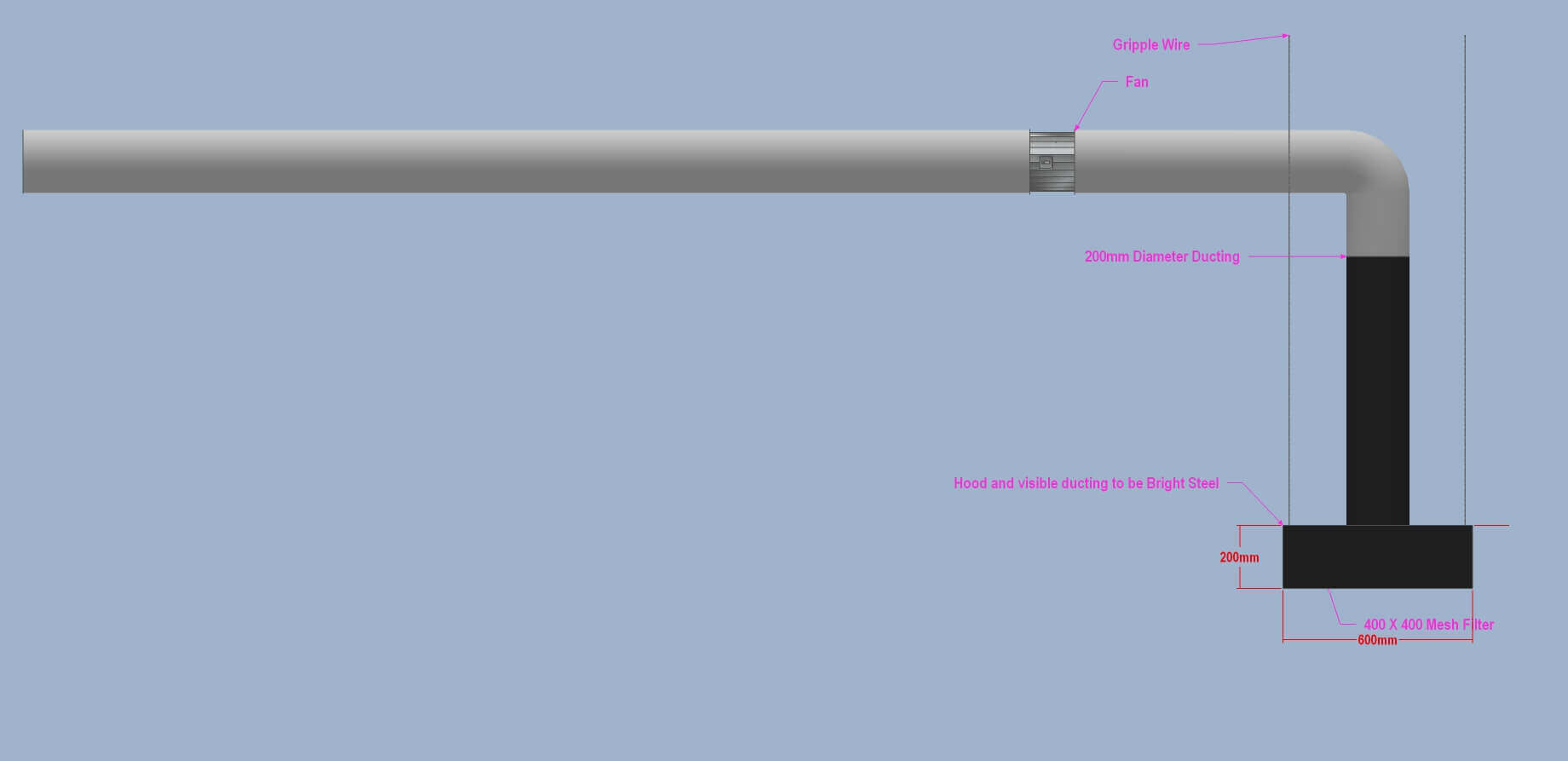

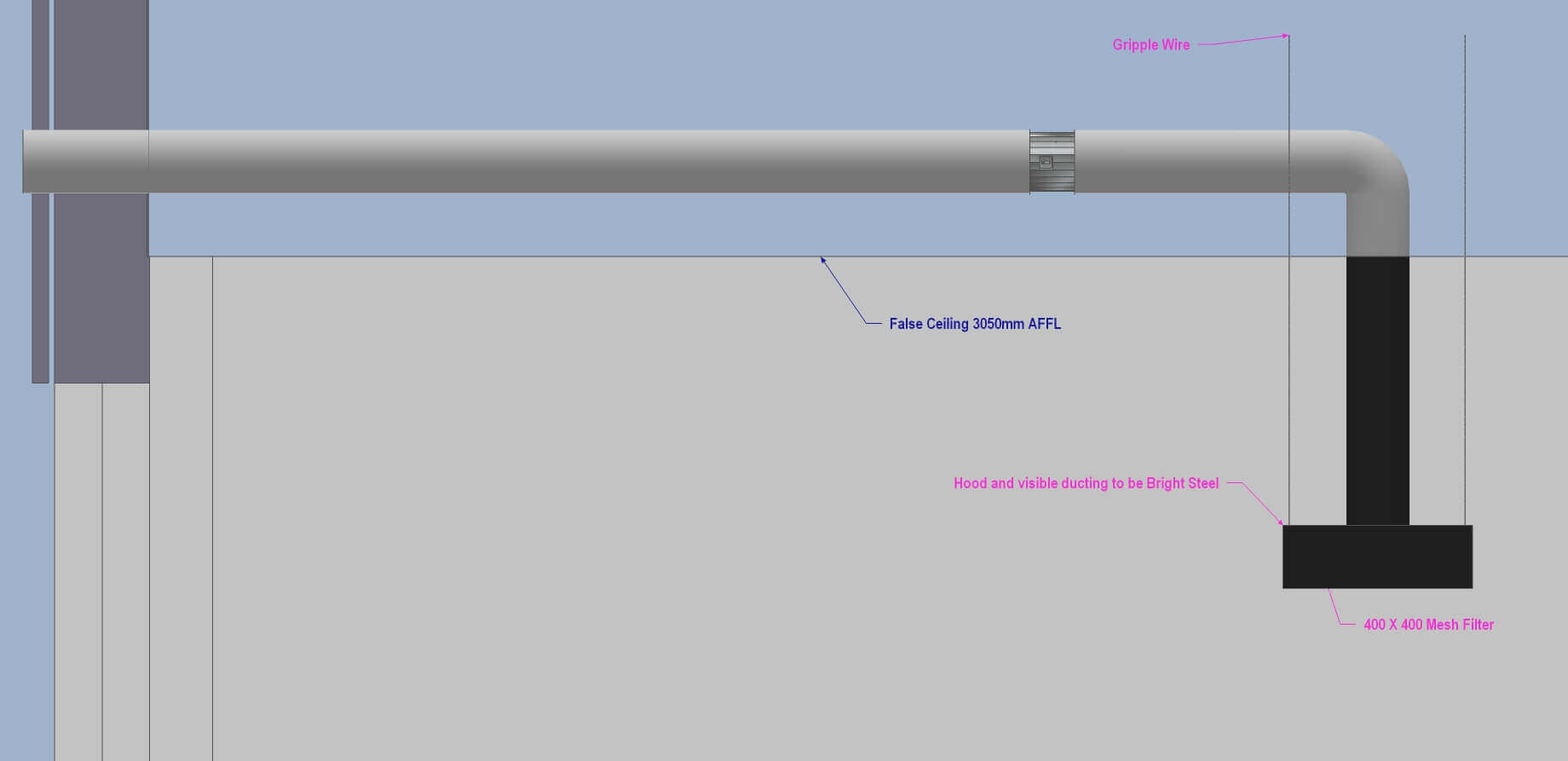

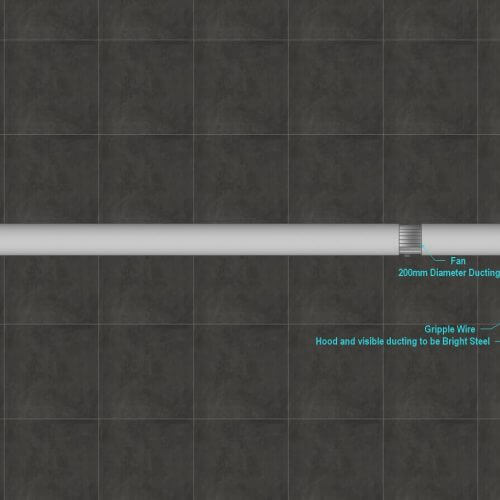

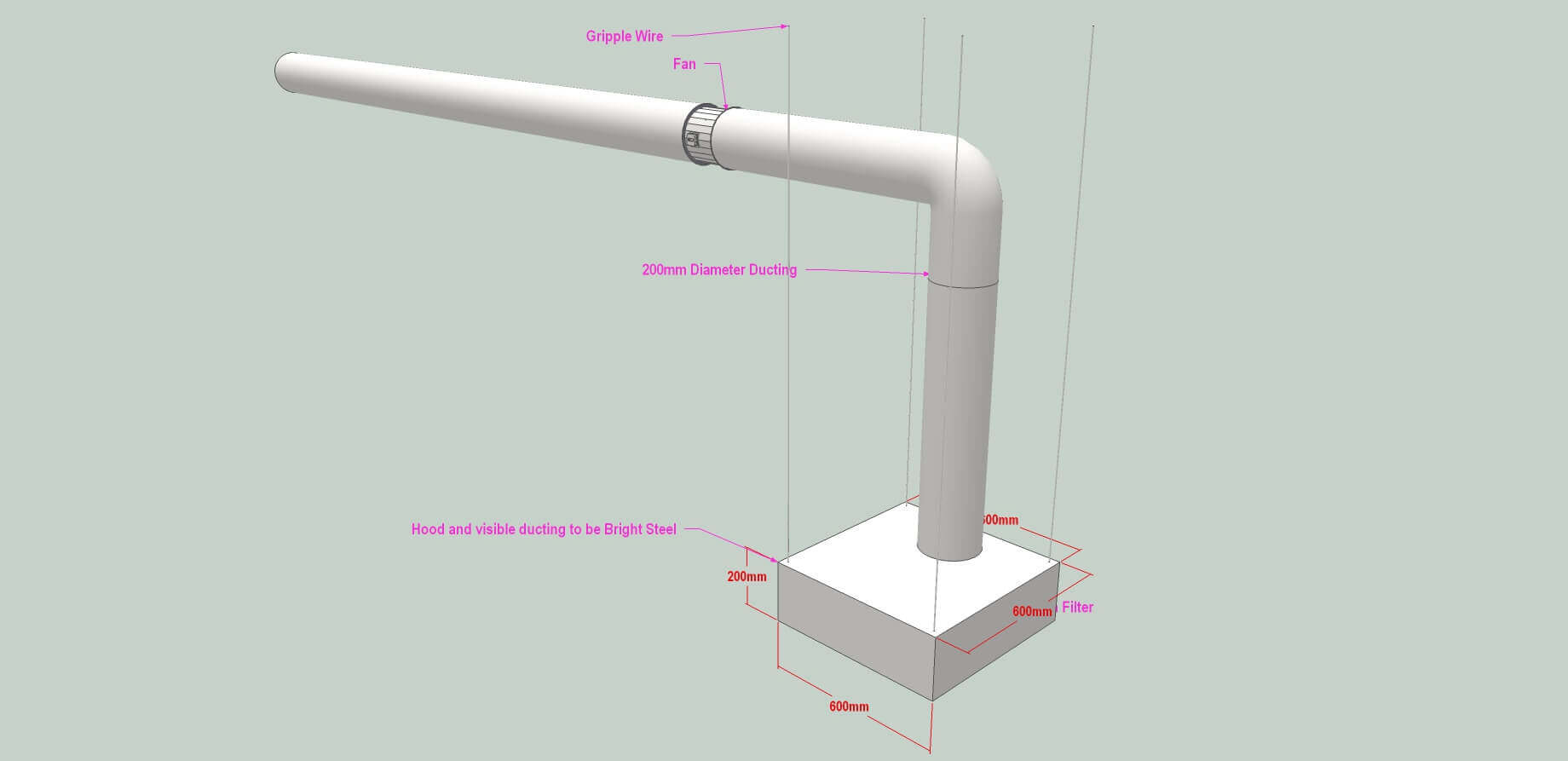

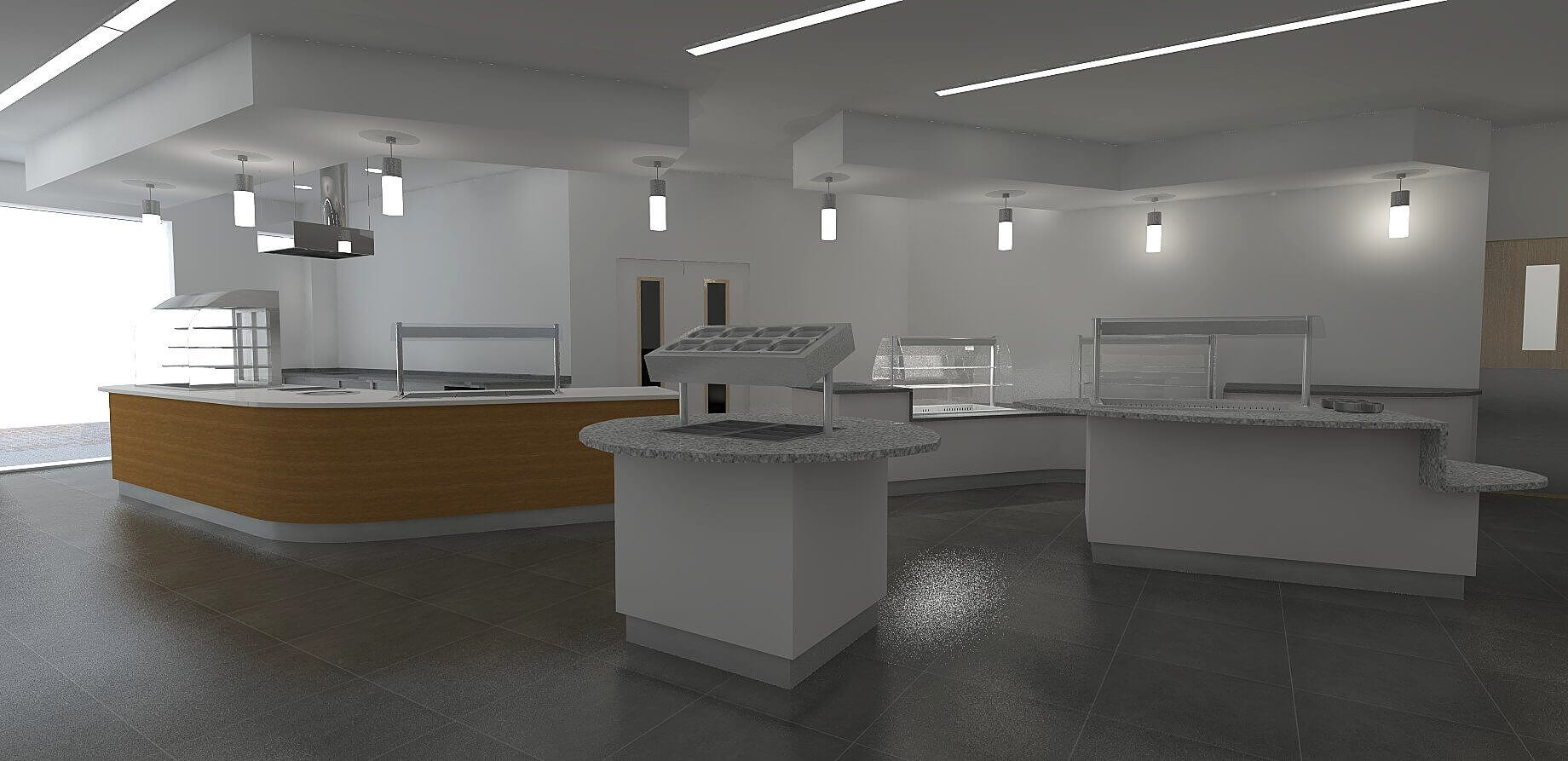

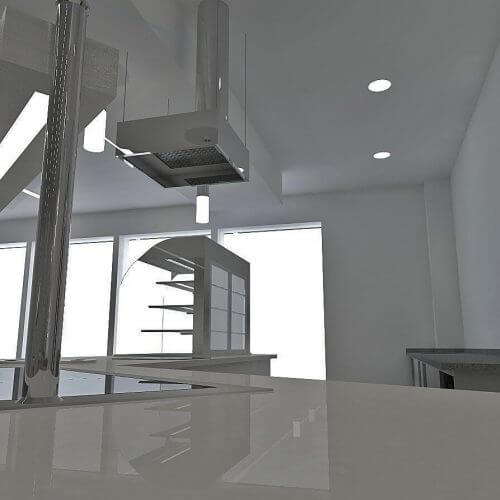

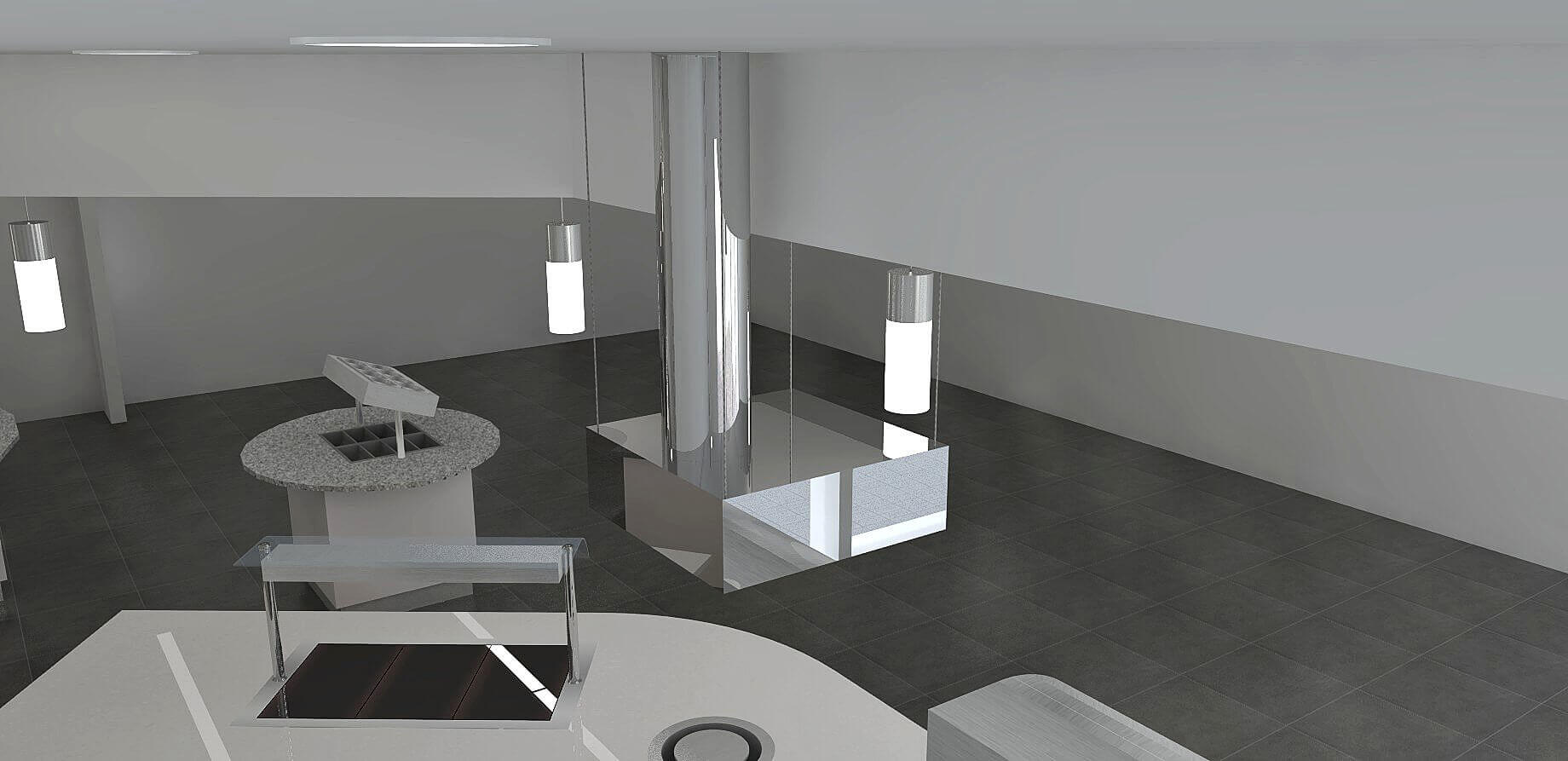

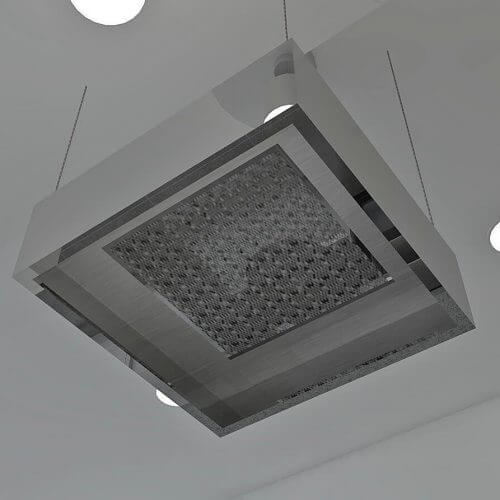

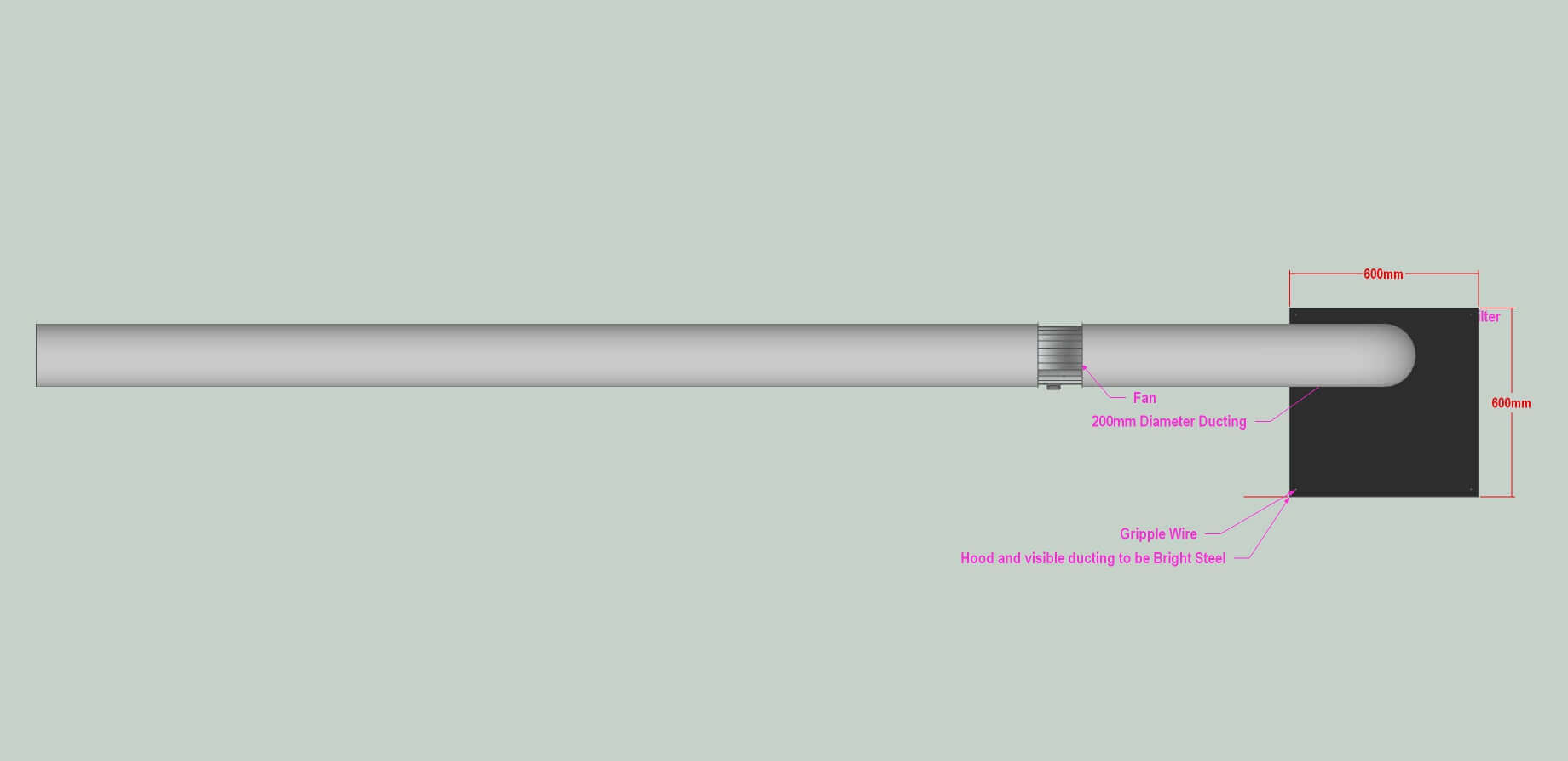

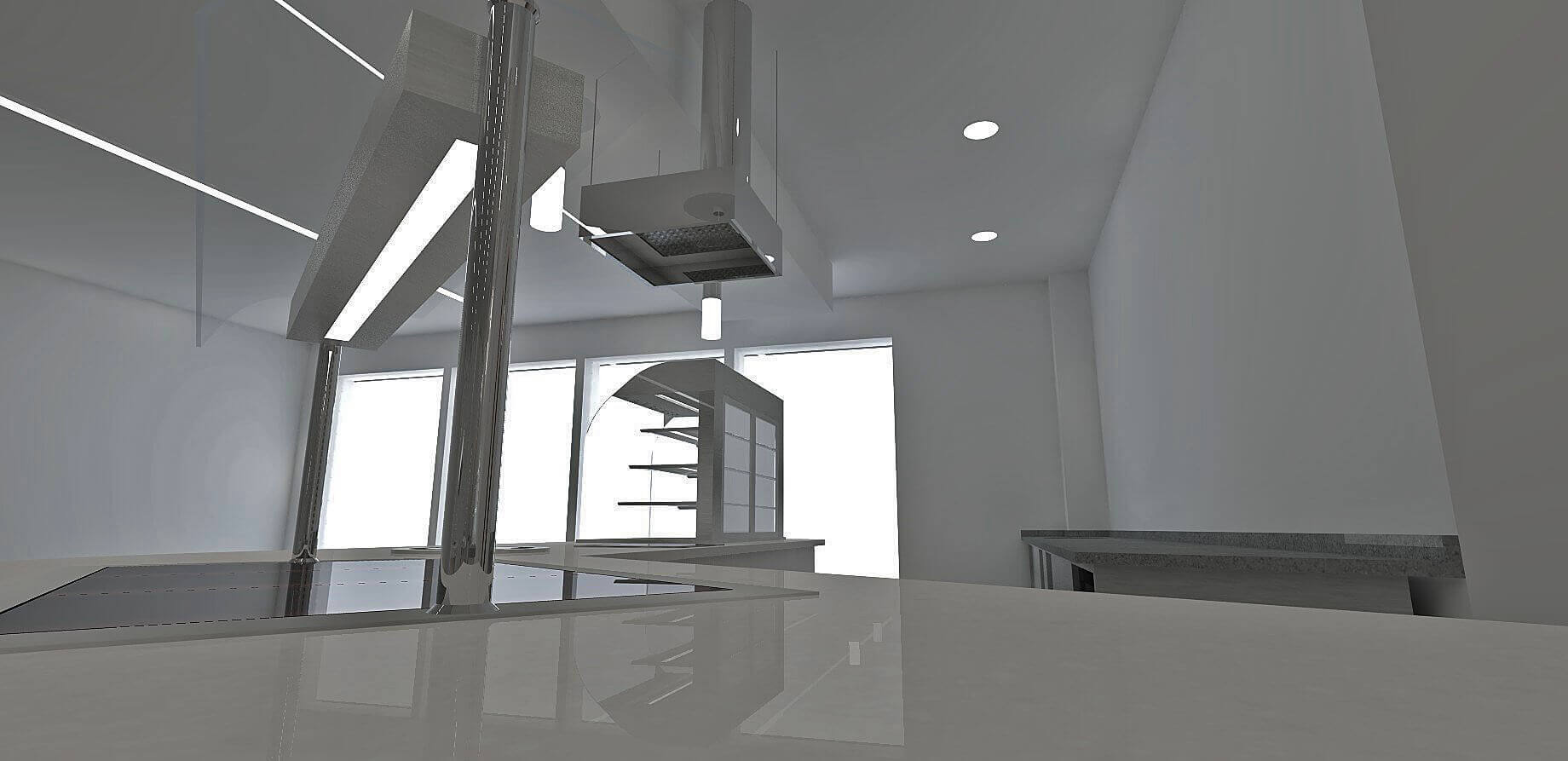

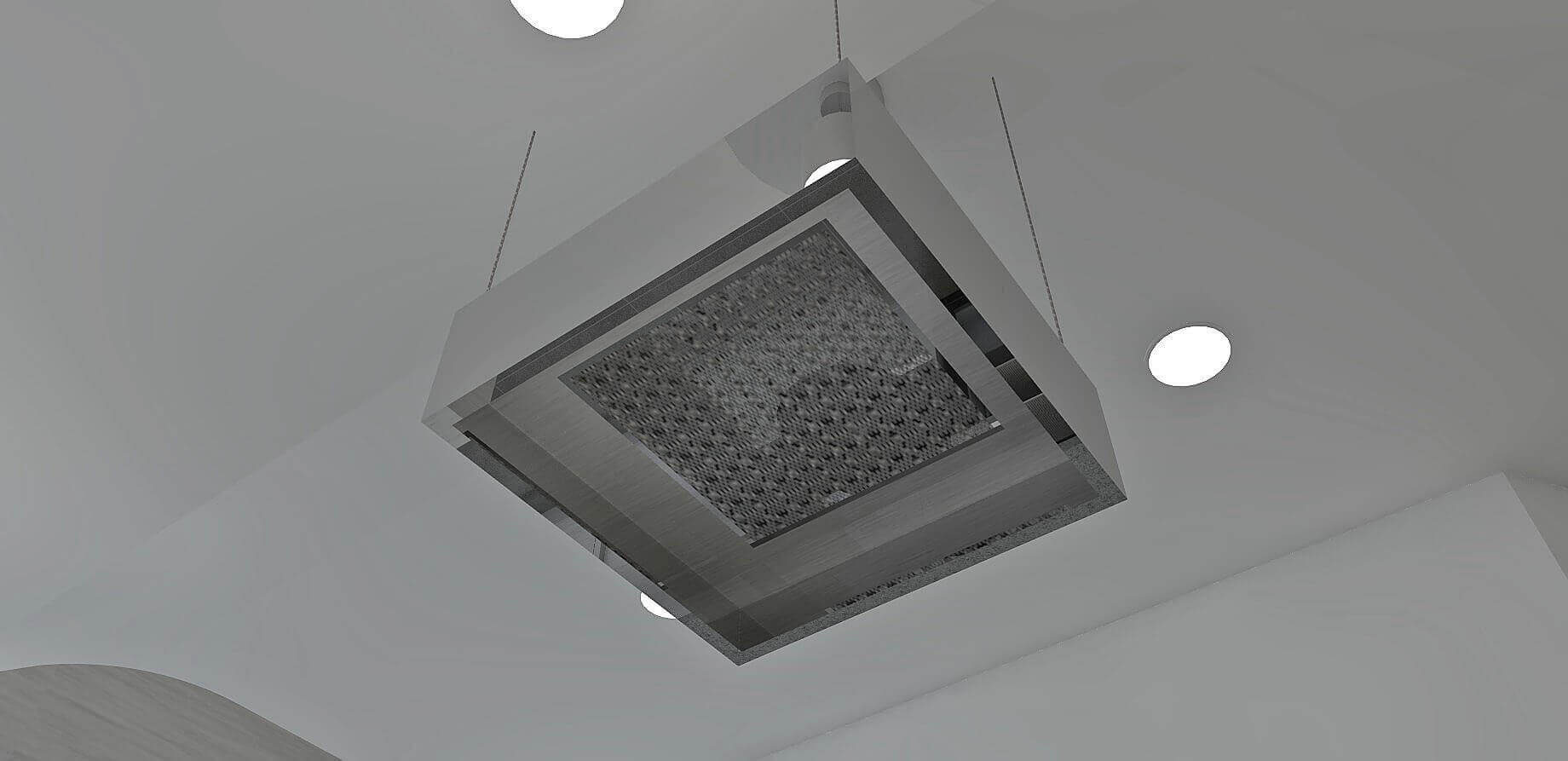

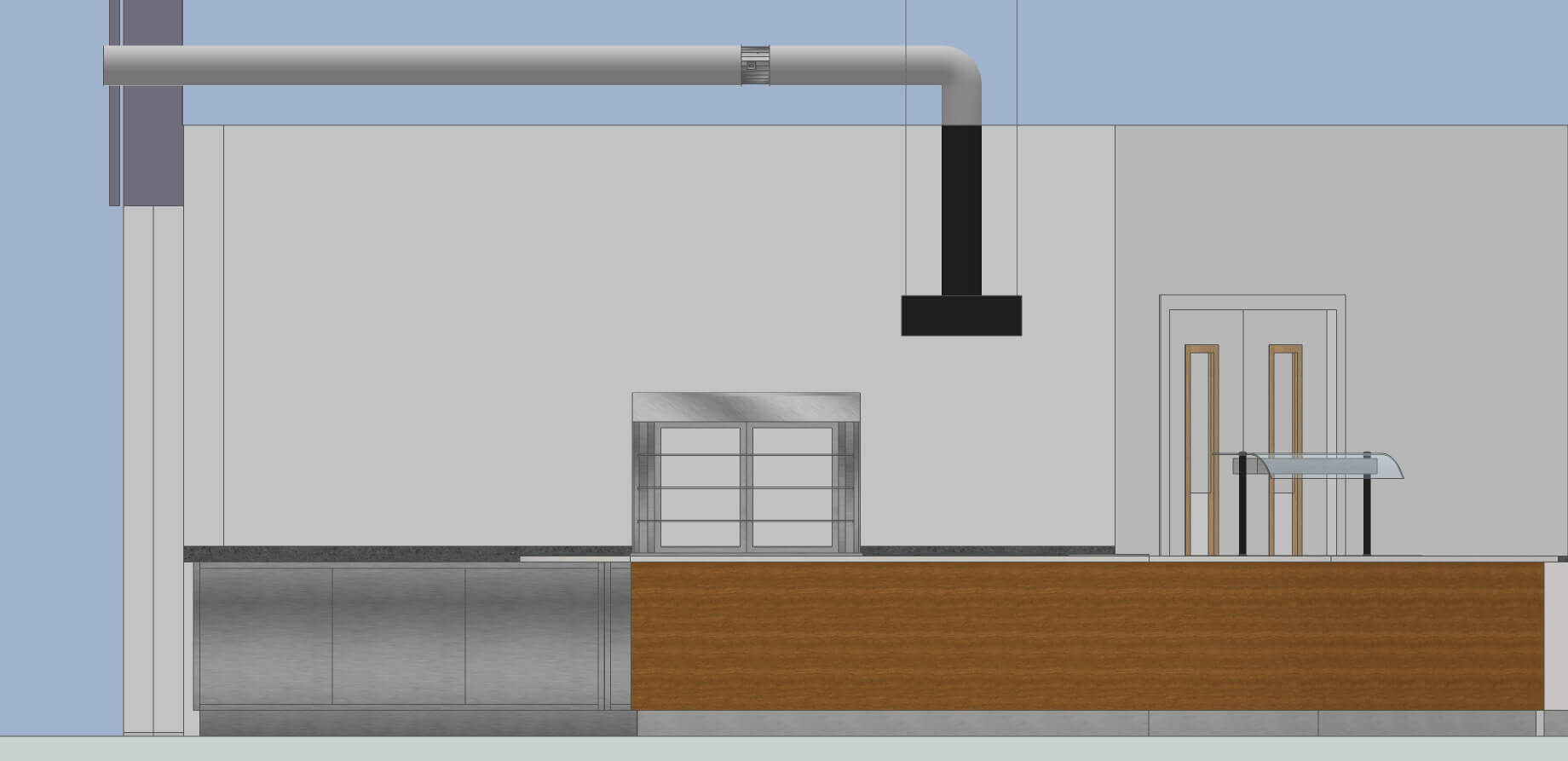

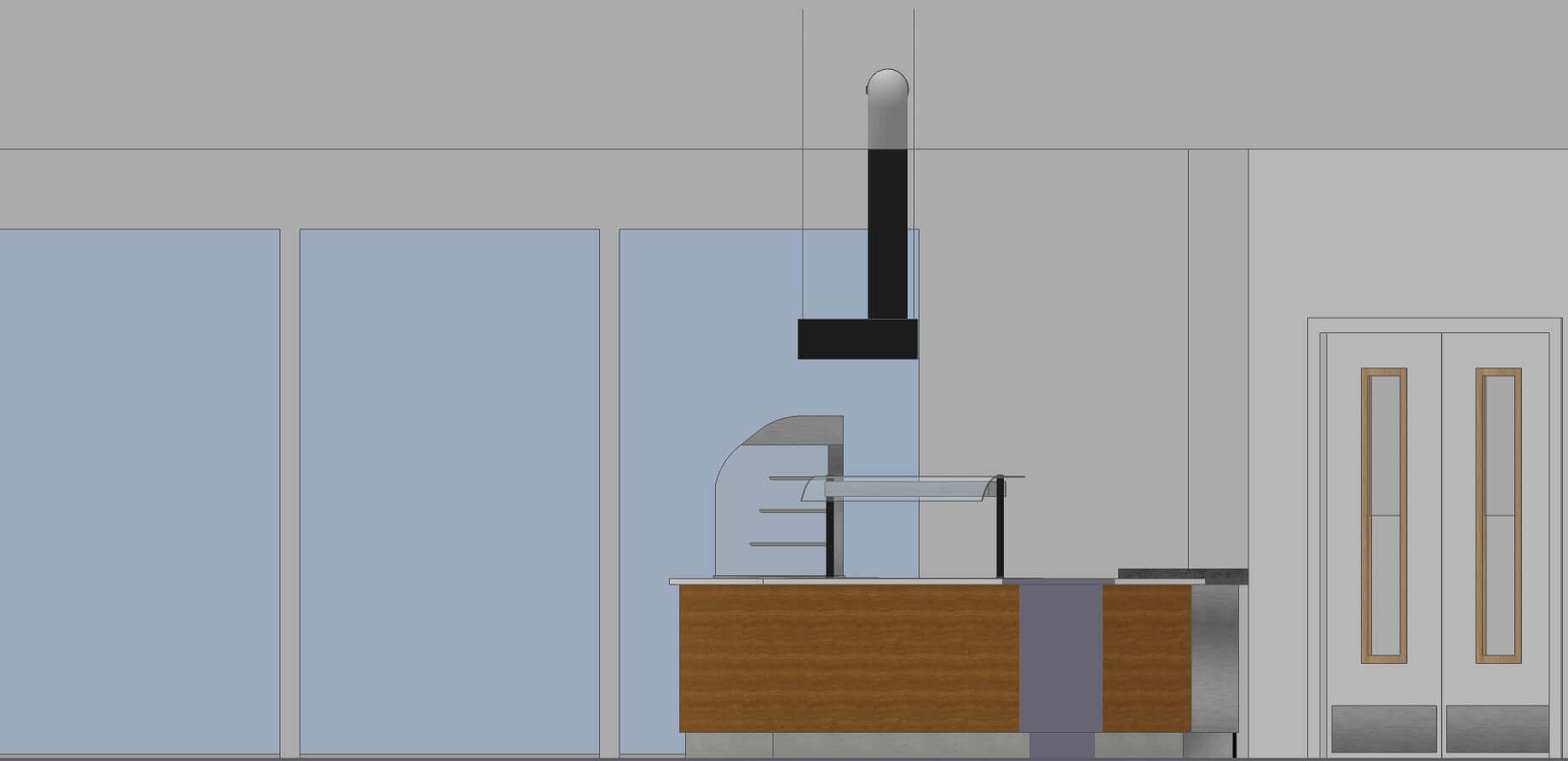

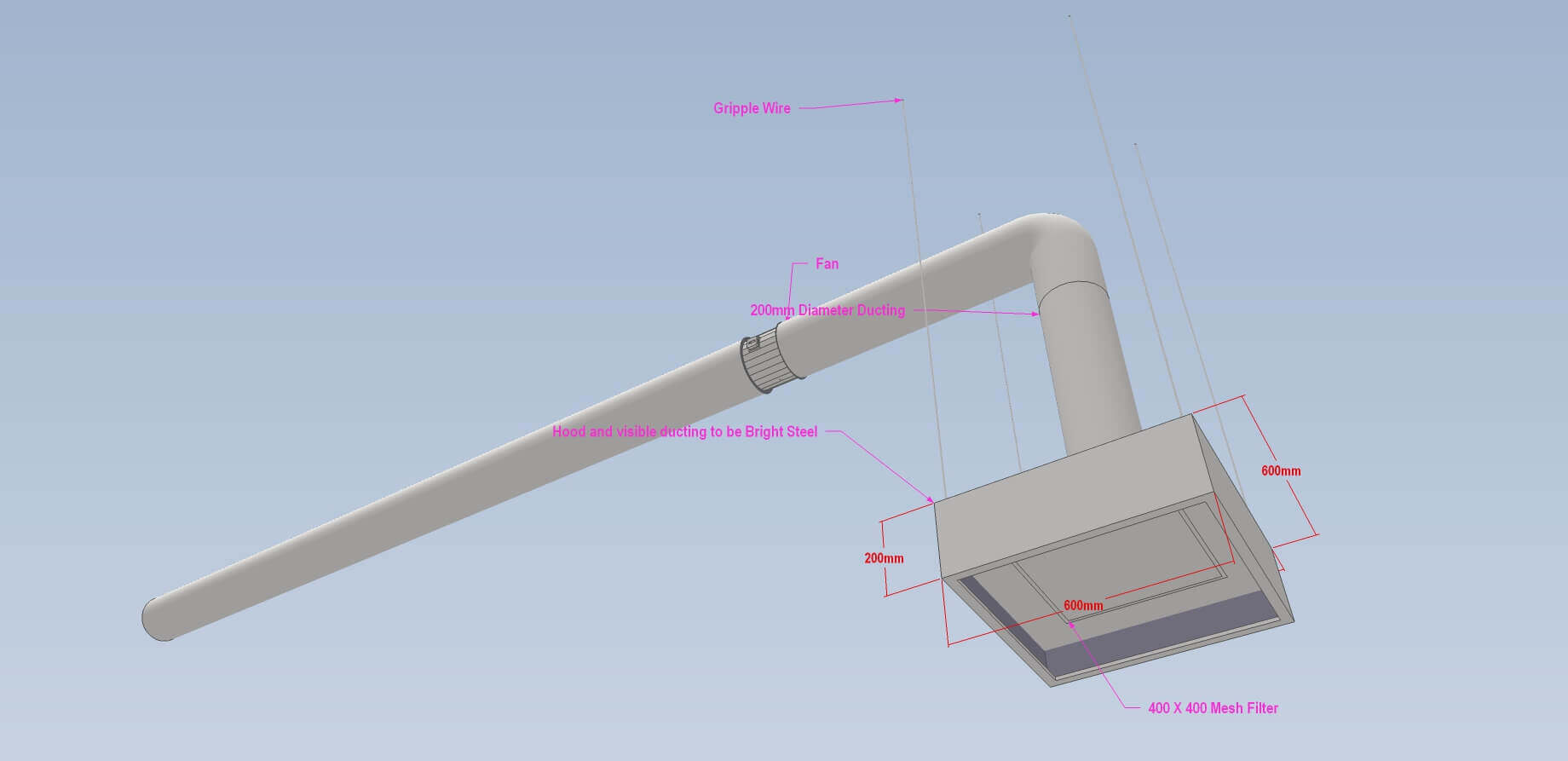

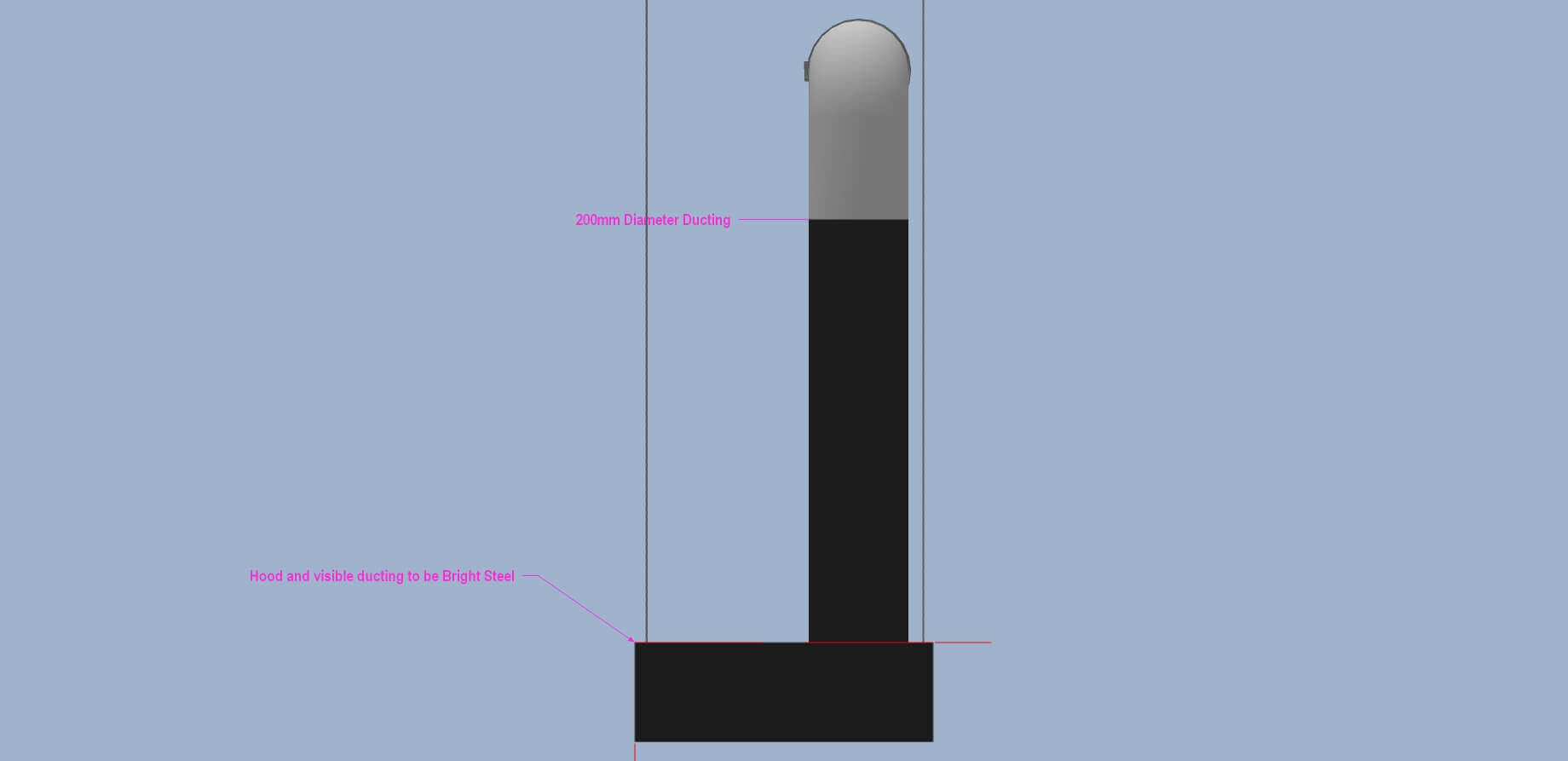

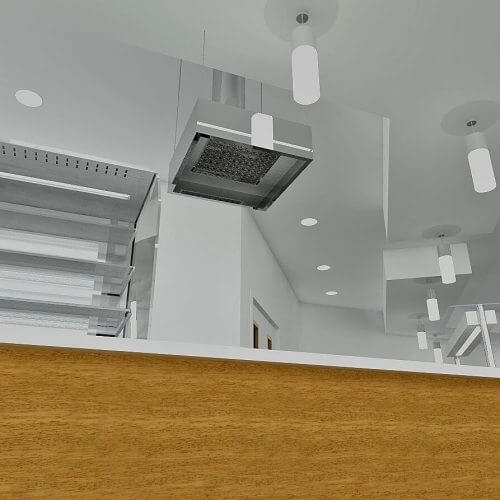

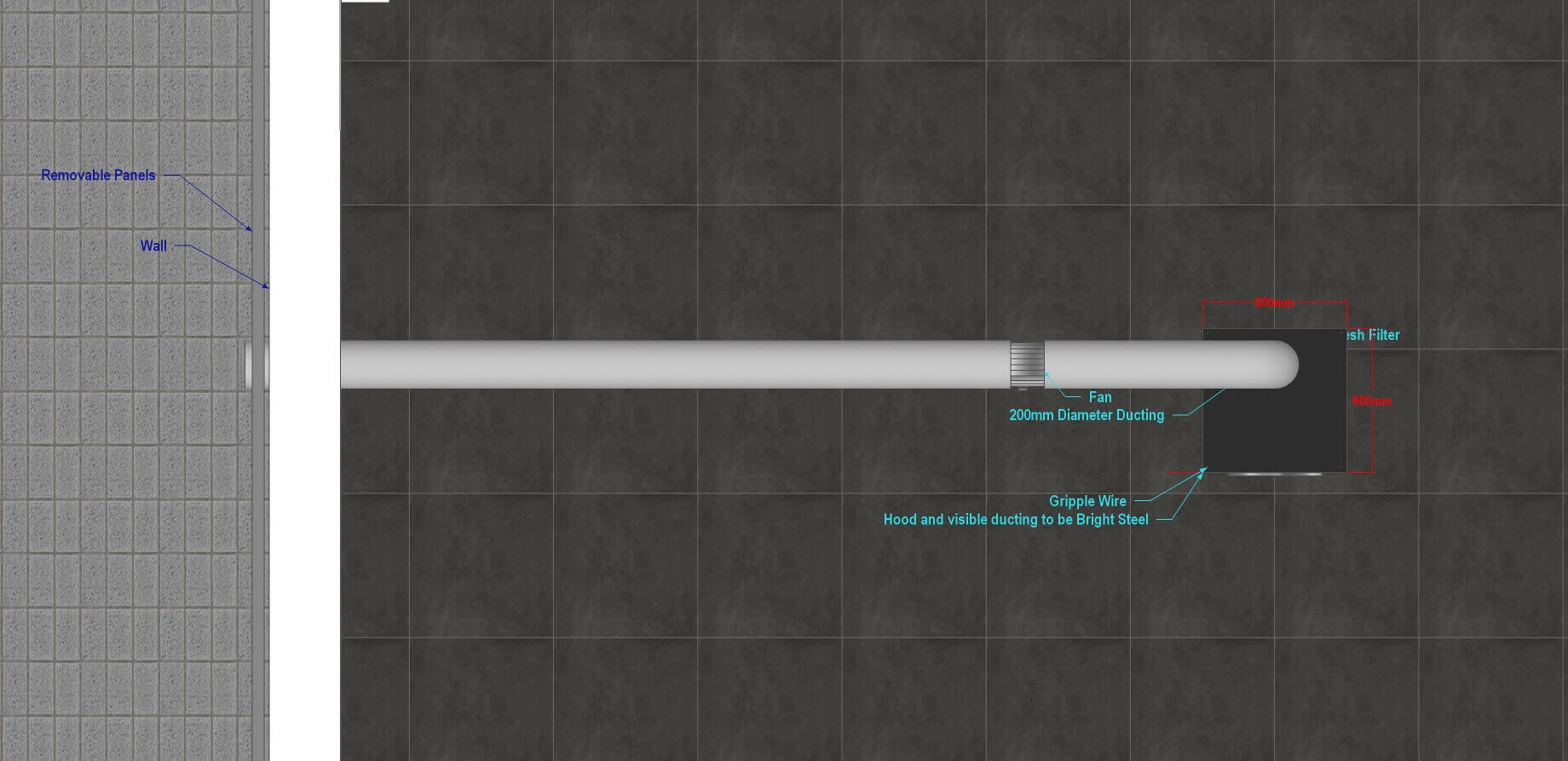

Dolphin Catering Fabrications have the facility to provide fully working 2D & 3D kitchen ventilation layout drawings. These include flow rate charts.

Dolphin Catering Fabrications usually combine a site visit with layout a layout drawing proposal to gauge the exact fan requirements and ducting routes before work commences.
